← All Profiles / LC-SR-140A
LC-SR-140A display product image
LC-SR-140A display product image
LC-SR-140A display product image

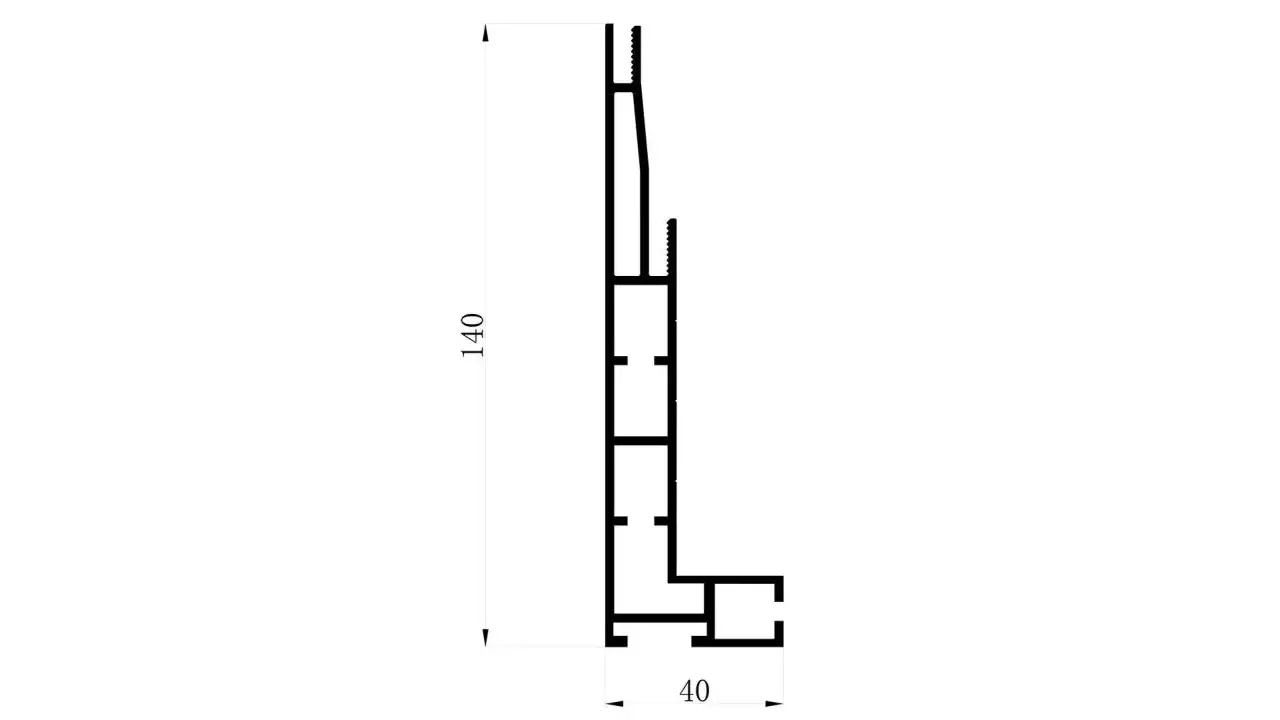

LC-SR-140A140 mm · single-sided frame · 6063-T5 aluminium


check Single-Side

check Fixed with connectors

check LED Supported

check Each bar length can be customized

check 6063-T5 Aluminum

check 2.267KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

The LC-SR-140A features our deepest single-sided frame profile at 140mm, engineered for extra-large, high-impact backlit display systems. This exceptional depth allows for widely spaced LED modules with optimized light diffusion distance, eliminating brightness irregularities on graphics spanning 10 meters or more. Manufactured from high-strength 6063-T5 aluminum, it maintains structural integrity for permanent architectural installations, shopping mall atrium displays and large-scale trade show booth builds. The integrated silicone edge channel delivers a perfectly taut, wrinkle-free graphic surface with clean, uninterrupted frame lines. It supports fully customized bar lengths and is compatible with standard corner connectors, mounting brackets and accessory hardware for complete turnkey frame solutions.

Application & Selection Notes

Where LC-SR-140A fits

A 140 mm depth makes LC-SR-140A a low-profile single-sided frame: the graphic finishes within a few millimetres of the wall, so the display reads as a printed panel rather than a box. It carries a single silicone-edge graphic, so the specification stays simple — frame, corners, connectors, fabric — with nothing behind the panel to service later.

Build, finish and compatibility

Ribs sit behind the visible face rather than in the channel, which is why the frame stays flat and the silicone edge seats without pinching. It is a purely mechanical frame — no LED cavity, no diffuser, no driver — so it pairs with printed fabric or paper graphics and needs no electrical provision at all.

Cutting, packing and lead time

Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.

Specification snapshot

LC-SR-140A is a single-sided frame, at 140 mm depth, 2.267 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.

Quick Answers

Q: Does LC-SR-140A take LED lighting?
A: No — LC-SR-140A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.

Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.

Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.

Specifications
Item number LC-SR-140A
Depth 140MM
Frame type Single-sided frame
Mounting Standing/ Mounted on the wall
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 2.267KG/M
LED LED Supported
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
