Lightweight structure, simple splicing installation, convenient screen replacement system
Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T6 Aluminum
0.862KG/M

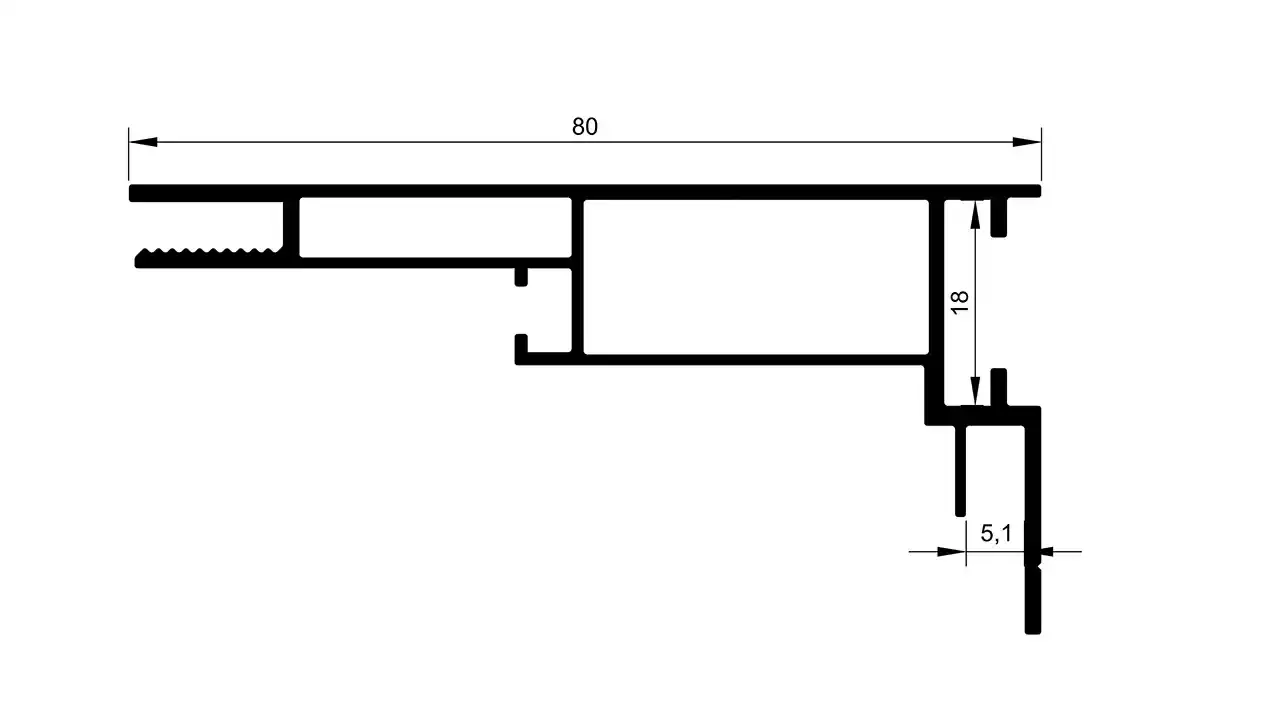

The LC-ST-80CA single-sided SEG aluminum profile is a classic 80mm depth solution for wall-mounted fabric lightbox frames. Made from high-quality 6063-T6 aluminum alloy at 0.862KG per meter, it delivers solid structural performance and is compatible with sandblasted anodized and sprayed surface treatments for flexible appearance options. This profile is designed for standard silicone edge graphic systems, supports built-in LED strip backlighting, and assembles efficiently with dedicated angle connectors. It is widely applied to retail in-store advertising, commercial signage, exhibition booth displays and indoor decorative light walls, with customizable bar lengths and custom color options available.
| Item number | LC-ST-80CA |
|---|---|
| Depth | 80MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T6 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.862KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
