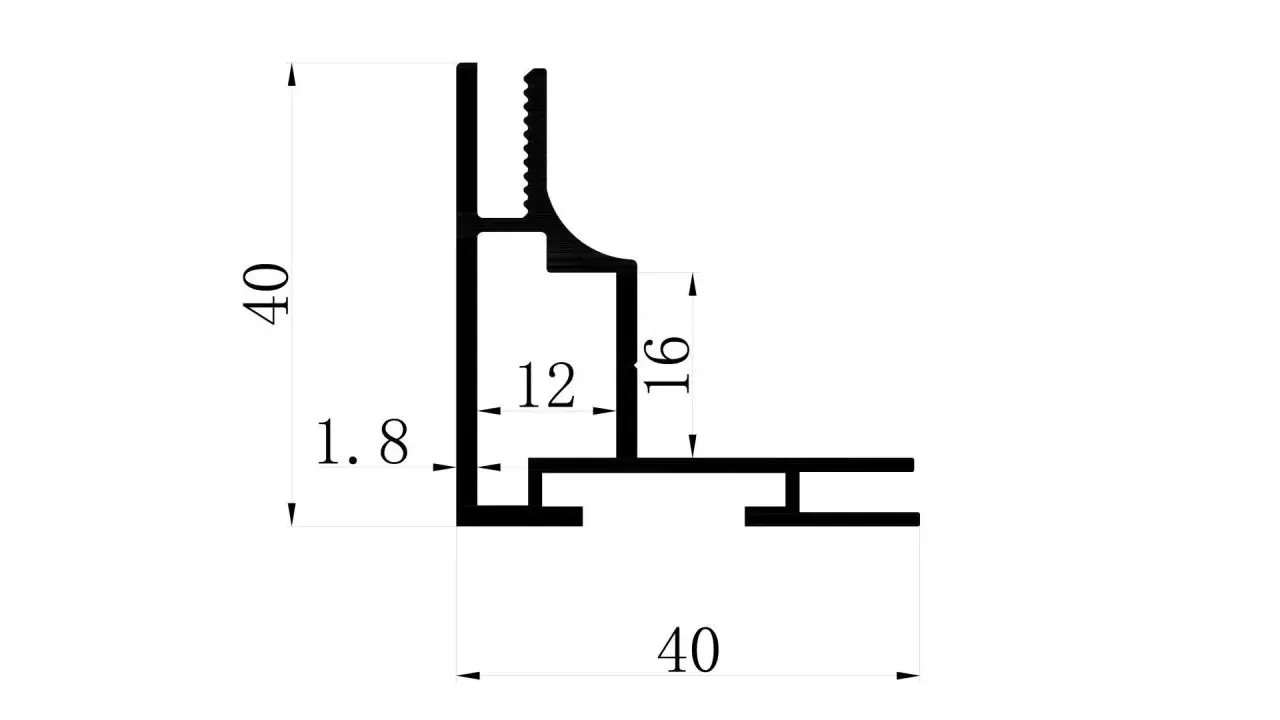

LC-SR-40A40 mm · single-sided frame · 6063-T5 aluminium


check Single-Side

check Fixed with connectors

check NO LED

check Each bar length can be customized

check 6063-T5 Aluminum

check 0.667KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

The LC-SR-40A is a 40mm deep single-sided SEG aluminum profile built for slim, modern backlit lightbox designs. With a minimal 4cm profile depth, it creates sleek, low-profile illuminated displays that sit close to the wall, making it ideal for contemporary office interiors, boutique retail spaces and hospitality environments. Despite its slim build, it accommodates compact edge-lit LED solutions to deliver bright, uniform graphic illumination. Constructed from precision-extruded 6063-T5 aluminum, it maintains excellent straightness and structural integrity even at longer bar lengths. The integrated SEG fabric channel produces a seamless, edge-to-edge graphic appearance with barely visible frame borders.

Application & Selection Notes

Where LC-SR-40A fits

At 40 mm deep, LC-SR-40A sits in the slimmest bracket of the range — the profile we quote for poster swaps in retail aisles, lift-lobby panels and office wayfinding, where a 2 cm shadow line around the graphic is already too much. One face, one graphic: there is no second panel, diffuser or light cavity, which is why this profile is the cheapest way to hold a silicone-edge fabric taut on a flat wall.

Build, finish and compatibility

Extruded in 6063-T5 aluminum, anodised and cut on our own lines, 0.667 kg per metre; wall thickness and ribbing are sized so the section stays true over a 3–5 m span when the fabric is tensioned. It mates with the corner set of the same family and with standard connectors, so a bespoke shape is cut rather than tooled.

Cutting, packing and lead time

Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.

Specification snapshot

LC-SR-40A is a single-sided frame, at 40 mm depth, 0.667 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.

Quick Answers

Q: Does LC-SR-40A take LED lighting?
A: No — LC-SR-40A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.

Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.

Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.

Specifications
Item number LC-SR-40A
Depth 40MM
Frame type Single-sided frame
Mounting Mounted on the wall
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 0.667KG/M
LED NO LED
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
Related Accessories
Connectors angle brackets
Lightbox rubber strip, PVC edge strip for fabric lightbox frames
SEG fabric lightbox textile
