← All Profiles / LC-ST-60A
LC-ST-60A display product image
LC-ST-60A display product image
LC-ST-60A display product image

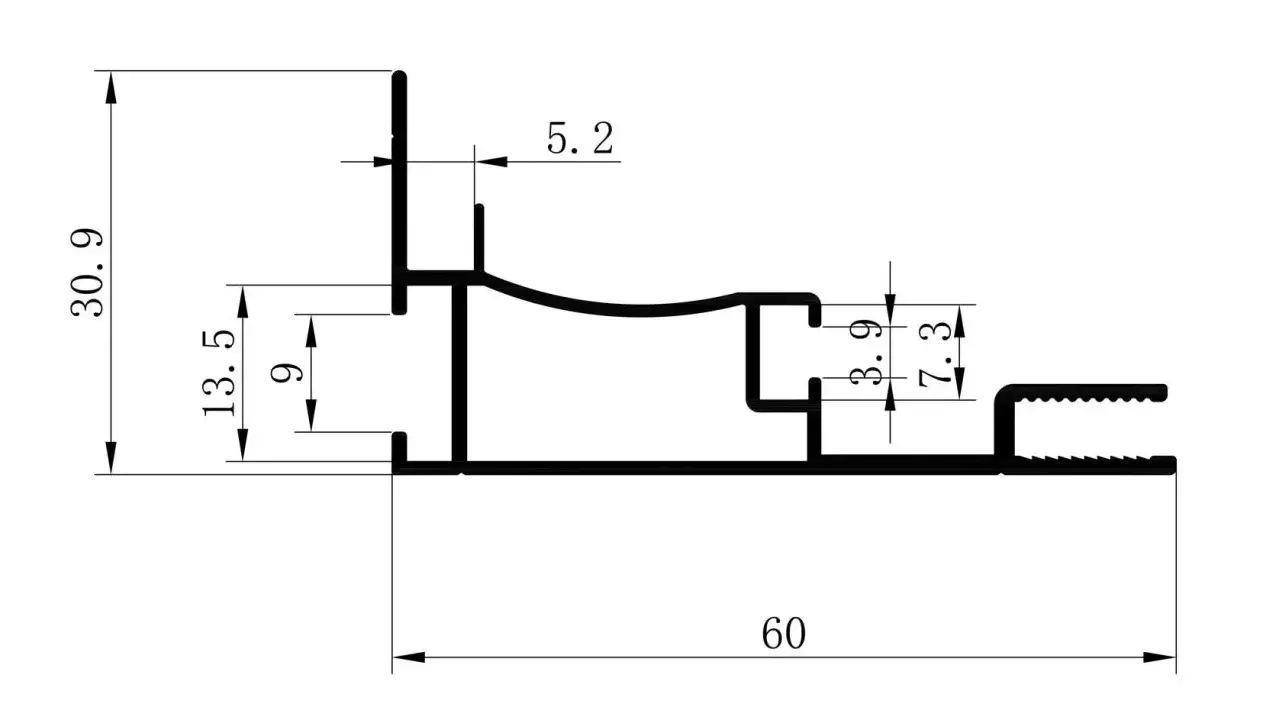

LC-ST-60A60 mm · single-sided frame · 6063-T5 aluminium


Lightweight structure, simple splicing installation, convenient screen replacement system

check Single-Side

check Fixed with connectors

check LED Supported

check Each bar length can be customized

check 6063-T5 Aluminum

check 0.519KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

The LC-ST-60A is a 60mm depth single-sided SEG aluminum extrusion designed for large-format wall-mounted backlit fabric displays. Made from high-grade 6063-T5 aluminum alloy, it provides sufficient internal depth for optimal LED light diffusion, eliminating hotspots and ensuring even brightness across oversized graphics. With a weight of 0.519kg per meter, it offers robust structural support for wide-span installations without excessive material weight. The standard 4mm SEG groove securely locks silicone-edged fabric graphics in place for a perfectly taut, professional finish. This profile is widely used in shopping mall atrium displays, airport advertising lightboxes, and exhibition hall large-format brand signage. It supports custom length fabrication and works with standard aluminum profile accessories including corner brackets, mounting clips, and end caps.

Application & Selection Notes

Where LC-ST-60A fits

With only 60 mm of build-up, LC-ST-60A is specified where the frame has to disappear — meeting-room graphics, showroom captions and corridor signage that sit flat against plaster or laminate. It carries a single silicone-edge graphic, so the specification stays simple — frame, corners, connectors, fabric — with nothing behind the panel to service later.

Build, finish and compatibility

The extrusion is 6063-T5 aluminum with a bead channel cut after anodising, so the groove stays clean and the fabric edge does not catch. Corner pieces and connectors from the same family close the frame with a friction fit, so a 1 × 2 m panel assembles on site with an Allen key and no welding.

Cutting, packing and lead time

We cut to length before packing — 3.5 m, 5 m or 6 m (custom lengths on request) as standard — and bundle each order in a plastic sleeve plus kraft paper so the anodised face arrives without scuffing. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.

Specification snapshot

LC-ST-60A is a single-sided frame, at 60 mm depth, 0.519 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.

Quick Answers

Q: Does LC-ST-60A take LED lighting?
A: No — LC-ST-60A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.

Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.

Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.

Specifications
Item number LC-ST-60A
Depth 60MM
Frame type Single-sided frame
Mounting Mounted on the wall
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 0.519KG/M
LED LED Supported
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
Related Accessories
Connectors angle brackets
Lightbox rubber strip, PVC edge strip for fabric lightbox frames
SEG fabric lightbox textile
