← All Profiles / LC-ZJ-03
LC-ZJ-03 display product image
LC-ZJ-03 display product image
LC-ZJ-03 display product image

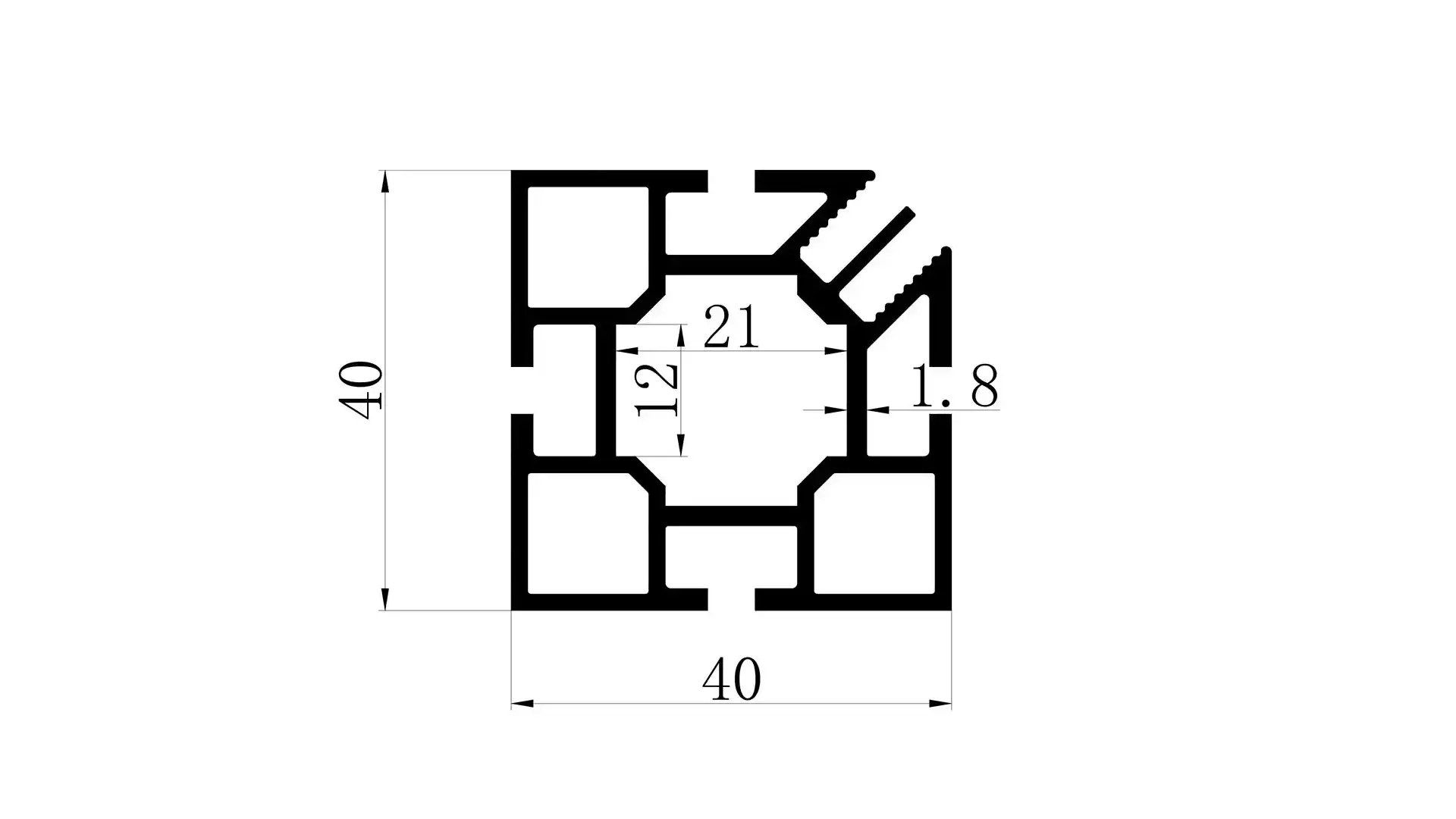

LC-ZJ-03frame junction profile · 6063-T5 aluminium


Lightweight structure, simple splicing installation, convenient screen replacement system

check Expander

check Each bar length can be customized

check 6063-T5 Aluminum

check 1.257KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

The lightweight structure is widely used in the field of advertising display, especially for making various card cloth light boxes, such as billboards in commercial areas, publicity columns in medical and educational institutions, display windows of various specialty stores, etc.

Application & Selection Notes

Where LC-ZJ-03 fits

LC-ZJ-03 belongs to the connector family: a frame junction profile that ties two bars together and keeps the frame true before the fabric goes in. A spare costs little and is the difference between finishing a build and waiting for a courier.

Build, finish and compatibility

Made from 6063-T5 aluminum, 1.257 kg per metre, with countersunk holes for M4 / M5 screws so nothing protrudes into the graphic channel. Check the application row against your frame series (the profile family it is quoted with); the same part number does not span every profile depth.

Cutting, packing and lead time

Packed by piece in a labelled bag inside the frame bundle, so a kit is not held up by a missing corner on site. Stocked items ship with the frame order; a sample set can be sent first so the fit is checked before a bulk run.

Specification snapshot

LC-ZJ-03 is a frame junction profile, 1.257 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.

Quick Answers

Q: Which frame series does LC-ZJ-03 fit?
A: It is quoted with the profile family it belongs to — send the frame model and fit is confirmed before shipping.

Q: Is it sold by piece or as a set?
A: By piece, bagged per part number, and normally packed with the bars. First orders include a 5% spares allowance.

Q: How fast is a quote and a sample?
A: Quoted in the same 24-hour reply as the bars; stock parts ship in 3–5 days and sample sets can go out before a bulk run.

Specifications
Item number LC-ZJ-03
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 1.257KG/M
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
