LC-P-4040B40 mm · exhibition profile · 6063-T5 aluminium


Exhibition and TradeShow

check Support Pillar

check Fixed with Connectors & Lock

check Each bar length can be customized

check 6063-T5 Aluminum

check 1.393KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

Aluminum profiles for exhibition stands are lightweight, high-strength materials known for their ease of processing, rapid assembly, corrosion resistance, aesthetic appeal, and environmental friendliness. They can be easily extruded into various shapes, facilitating flexible design and connection options. With specialized connectors, they offer quick and efficient setup, reducing labor costs and time. Their corrosion resistance ensures durability, even in outdoor environments. Aluminum profiles can be customized with various finishes to suit design preferences, enhancing the stand's visual appeal. Moreover, their recyclability aligns with green building trends. Suitable for exhibition stands, display racks, and temporary structures, aluminum profiles are a versatile and efficient choice for exhibition layout.

Application & Selection Notes

Where LC-P-4040B fits

For a stand that is built on site and struck two days later, LC-P-4040B keeps the 40 mm frame light enough to handle without a lift. The frame goes up with a hex key and comes down the same way, which is how a display ends up in a case instead of a skip.

Build, finish and compatibility

Extruded in 6063-T5 aluminum; the visible edges are radiused so a fabric skin pulls over the frame without snagging, 1.393 kg per metre, and coating in silver, black, white or a custom colour is available. Corner blocks, base plates and connectors from the same programme close the frame; nothing has to be machined on site beyond cutting bars to length.

Cutting, packing and lead time

Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.

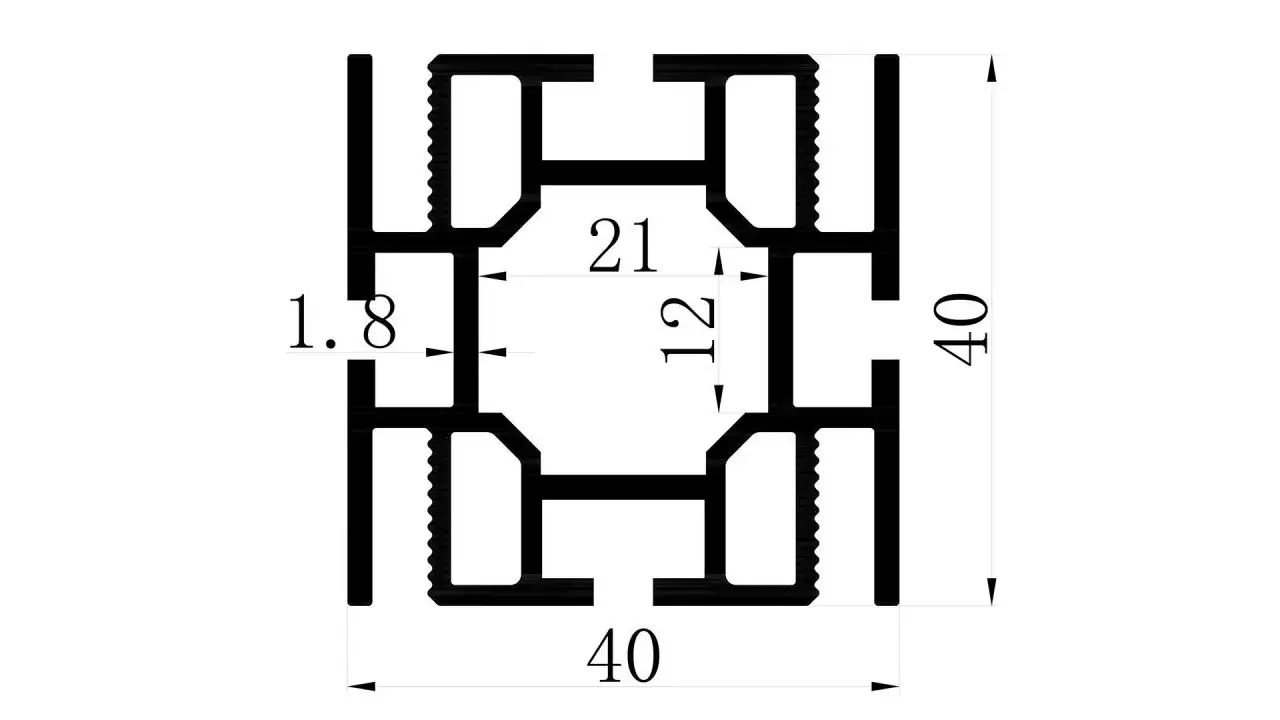

Specification snapshot

LC-P-4040B is a support Pillar, at 40 mm depth, 1.393 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.

Quick Answers

Q: Can LC-P-4040B be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.

Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.

Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.

Specifications
Item number LC-P-4040B
Depth 40MM
Frame type Support Pillar
Mounting Use lock to secure frame
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 1.393KG/M
LED NO LED
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
