Lightweight structure, simple splicing installation, convenient screen replacement system
Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T6 Aluminum
0.966KG/M

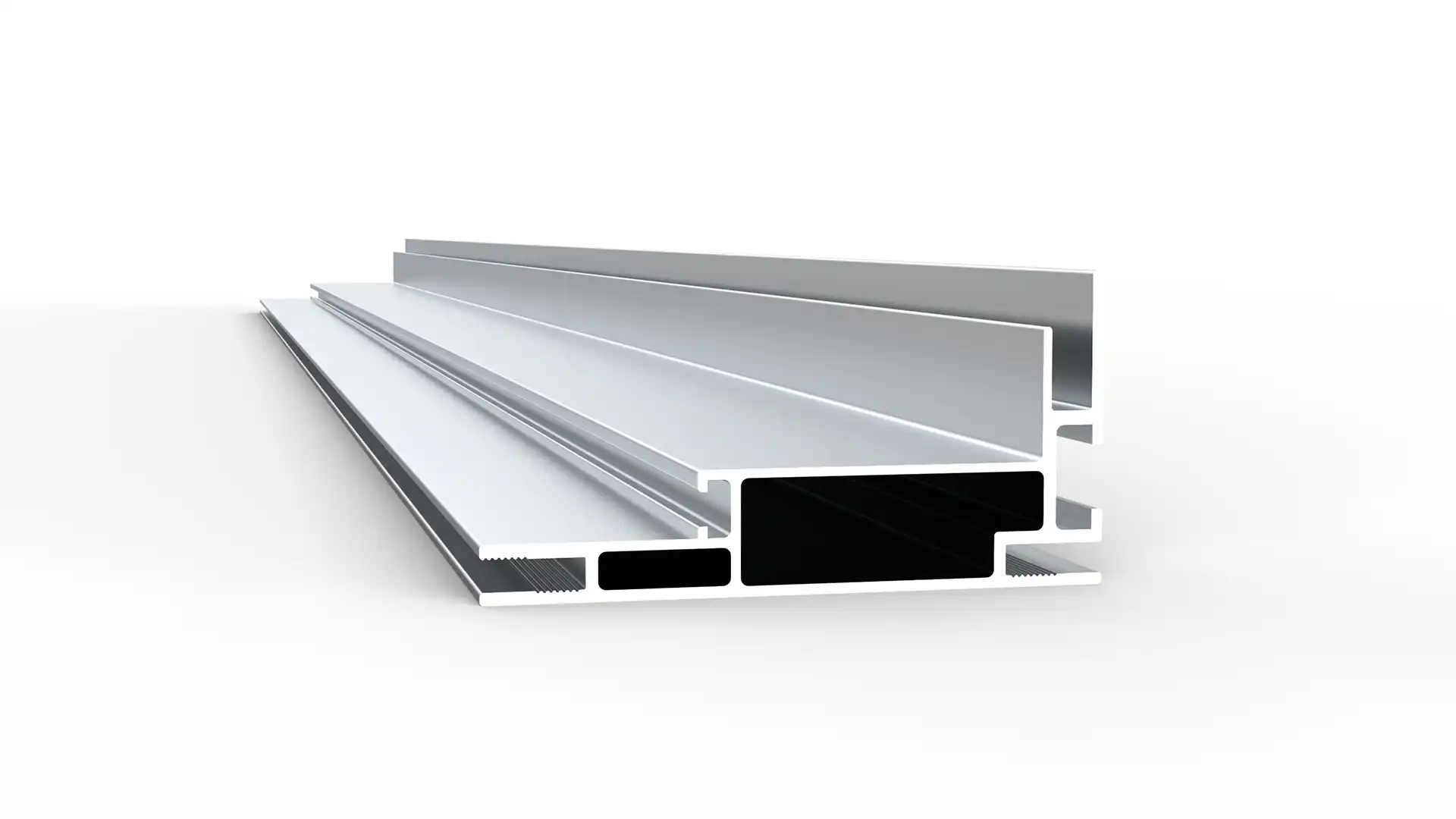

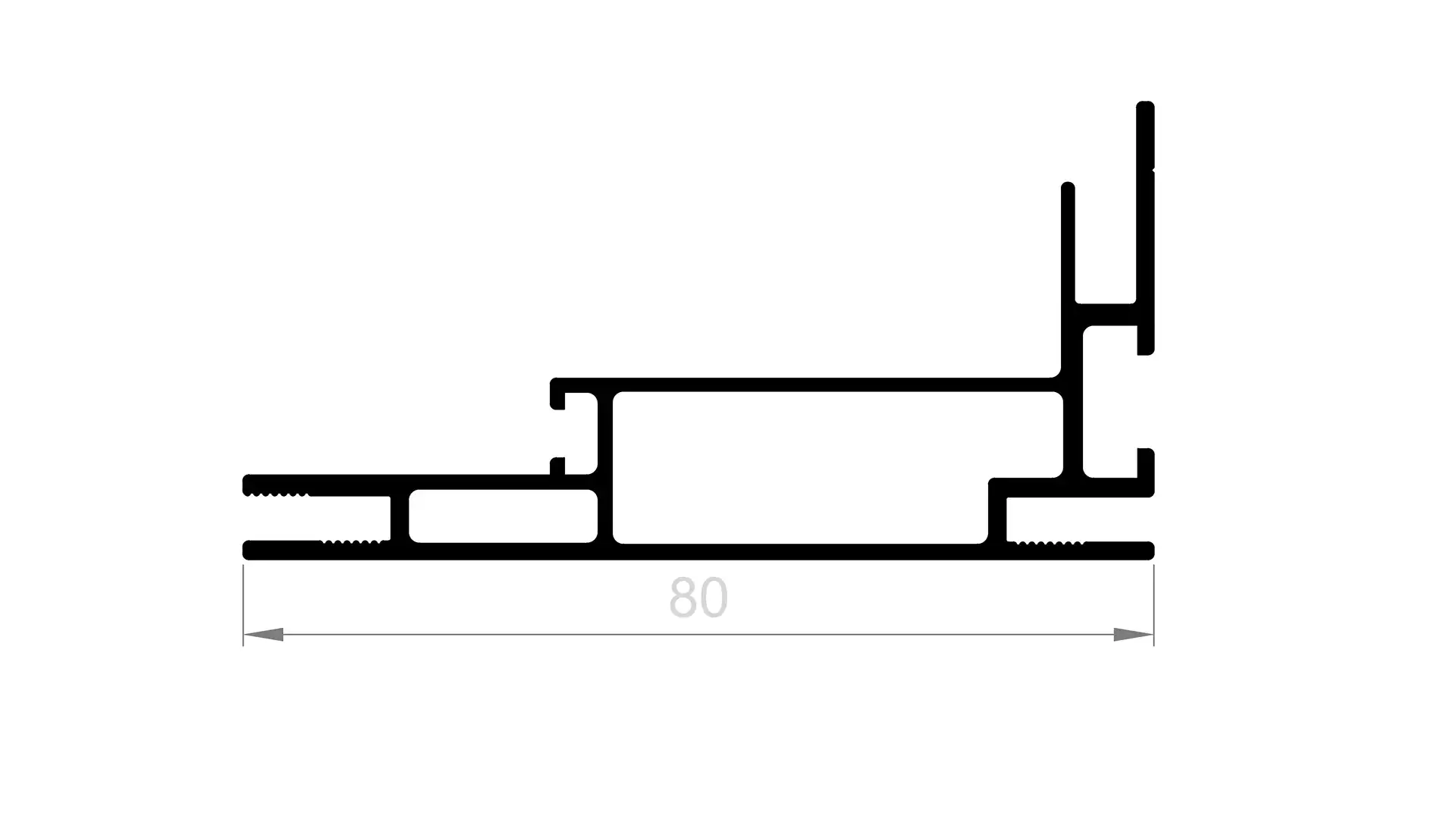

The LC-ST-80F single-sided SEG aluminum profile is a reinforced 80mm depth solution for wall-mounted lightbox frames. Made of premium 6063-T6 aluminum alloy at 0.966KG per meter, it features enhanced wall thickness for higher load capacity and durability, suitable for medium-to-large display projects. It supports both sandblasted anodized and sprayed surface treatments for diverse appearance requirements, is fully compatible with LED strip backlighting, and works with standard SEG connectors for rapid assembly. Ideal for commercial advertising lightboxes, shopping mall displays, exhibition booths and indoor brand wall projects, with customizable bar lengths and custom colors available.
| Item number | LC-ST-80F |
|---|---|
| Depth | 80MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T6 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.966KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
