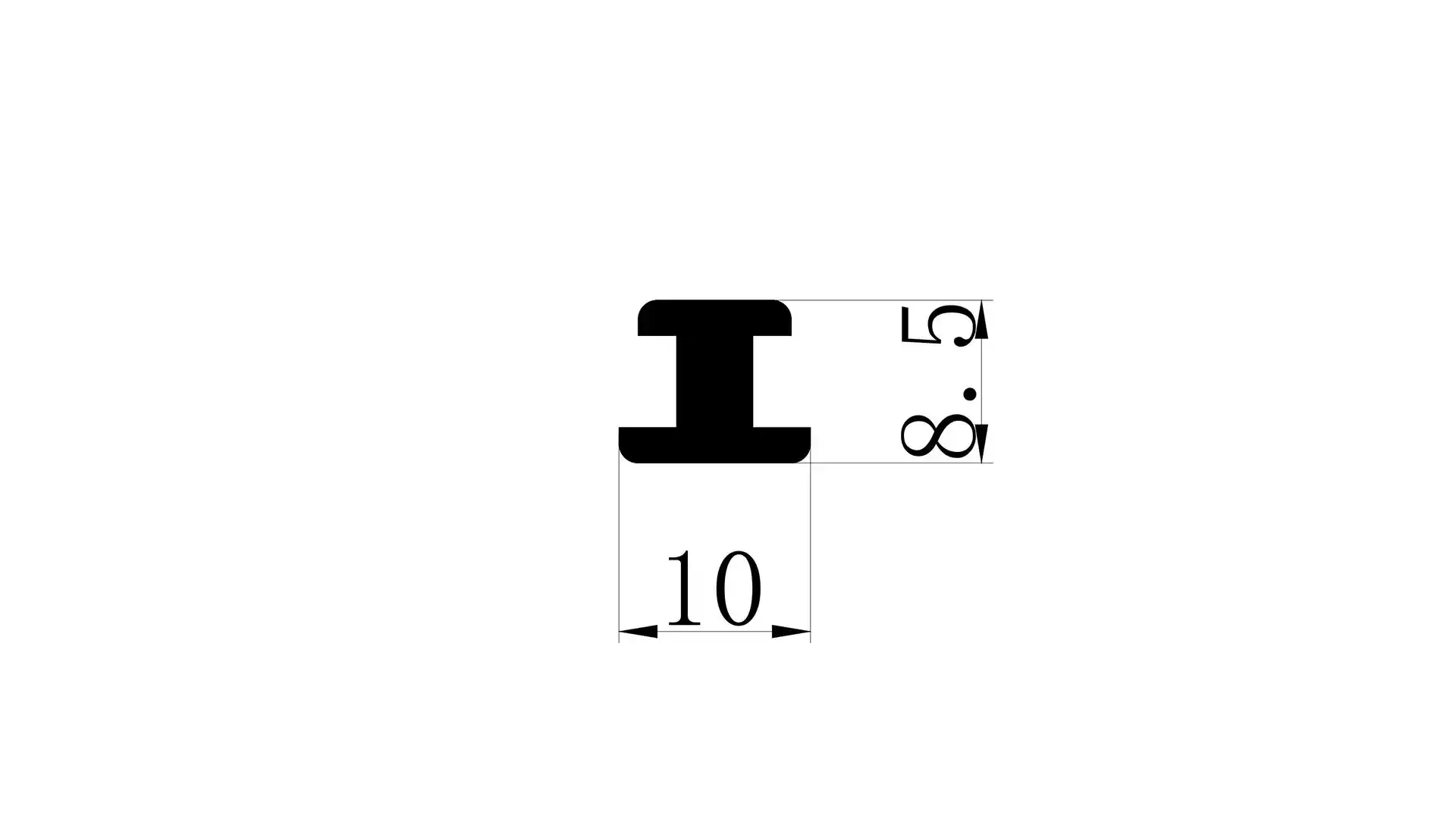

LC-ZJ-09frame junction profile · 6063-T5 aluminium


check Expander

check Each bar length can be customized

check 6063-T5 Aluminum

check 0.143KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

Expander

Application & Selection Notes

Where LC-ZJ-09 fits

LC-ZJ-09 is the joint detail behind a clean corner: a frame junction profile that holds two bars at a right angle while the fabric is tensioned over it. It is ordered against the frame model rather than guessed, because depth and channel differ across the range.

Build, finish and compatibility

Extruded in 6063-T5 aluminum, 0.143 kg per metre; the screw holes are countersunk so the head sits below the surface and the graphic slides over it. It closes the joint that the profile drawing assumes, which is why bars and connectors are quoted as one list.

Cutting, packing and lead time

Packed by piece in a labelled bag inside the frame bundle, so a kit is not held up by a missing corner on site. Stocked items ship with the frame order; a sample set can be sent first so the fit is checked before a bulk run.

Specification snapshot

LC-ZJ-09 is a frame junction profile, 0.143 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.

Quick Answers

Q: Which frame series does LC-ZJ-09 fit?
A: It is quoted with the profile family it belongs to — send the frame model and fit is confirmed before shipping.

Q: Is it sold by piece or as a set?
A: By piece, bagged per part number, and normally packed with the bars. First orders include a 5% spares allowance.

Q: How fast is a quote and a sample?
A: Quoted in the same 24-hour reply as the bars; stock parts ship in 3–5 days and sample sets can go out before a bulk run.

Specifications
Item number LC-ZJ-09
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 0.143KG/M
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
