Lightweight structure, simple splicing installation, convenient screen replacement system
Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T6 Aluminum
0.86KG/M

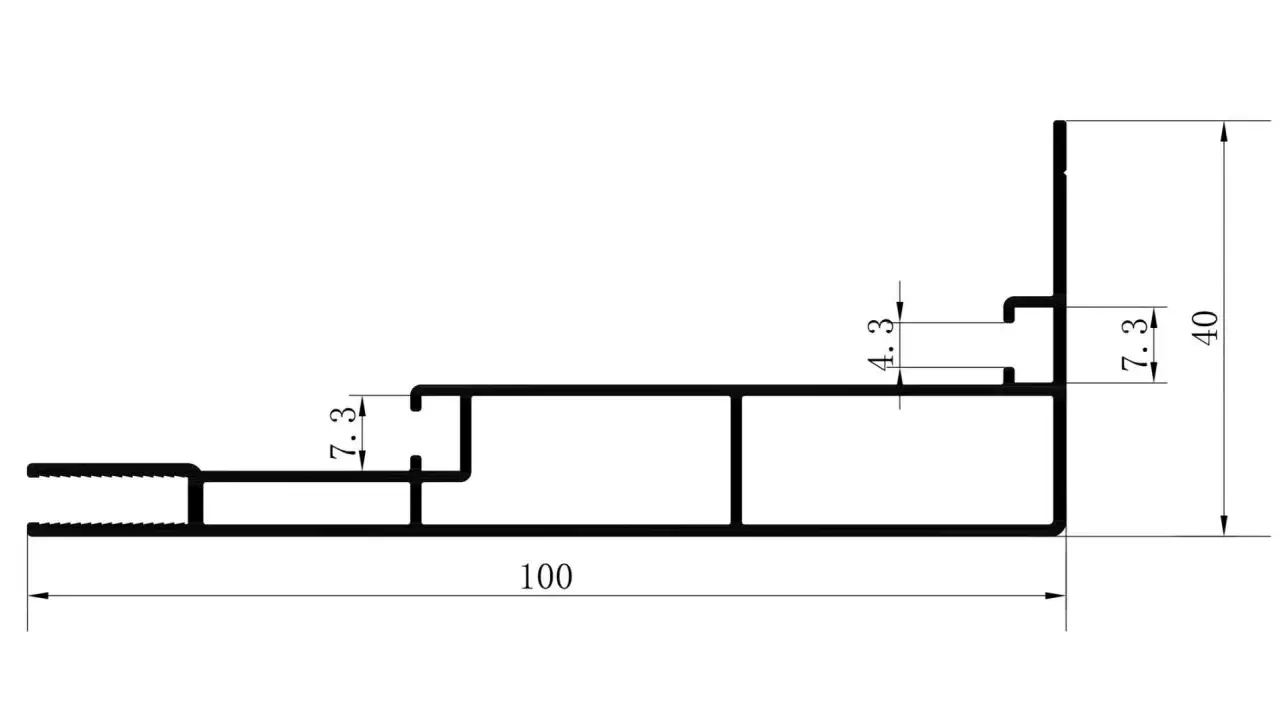

The LC-ST-100B single-sided SEG aluminum profile is a versatile 100mm depth solution for wall-mounted backlit displays. Produced from high-quality 6063-T6 aluminum alloy with a weight of 0.86KG per meter, it offers reliable structural performance and is compatible with both sandblasted anodized and sprayed surface finishes. Designed for standard silicone edge graphics systems, it supports built-in LED strips for even backlighting and assembles quickly with matching connectors. Suitable for retail store advertising, shopping mall lightbox walls, exhibition booth displays and indoor brand presentation, with customizable bar lengths and color options to fit project specifications.
| Item number | LC-ST-100B |
|---|---|
| Depth | 100MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T6 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.86KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
