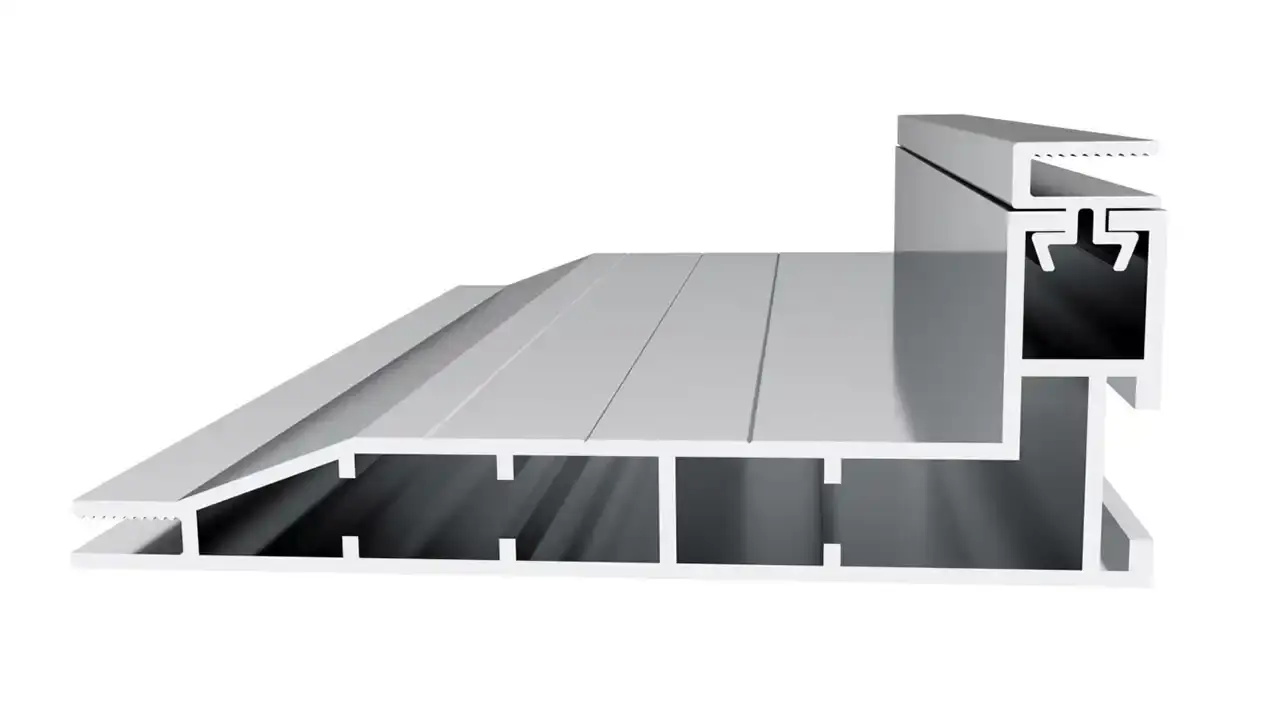

LC-SR-15C display product image
LC-SR-15C display product image
LC-SR-15C display product image

LC-SR-15C15 mm · extensions · 6063-T5 aluminium


Need to be used together, it can make ordinary profiles have SEG effect

LC-SR-15C 15mm Single-Sided SEG Auxiliary Aluminum Profile Extensions

LC-SR-15C 15mm Single-Sided SEG Auxiliary Aluminum Profile Each bar length can be customized

LC-SR-15C 15mm Single-Sided SEG Auxiliary Aluminum Profile 6063-T5 Aluminum

LC-SR-15C 15mm Single-Sided SEG Auxiliary Aluminum Profile 0.195KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

LC-SR-15C is a special 15mm auxiliary single-sided SEG aluminum profile without LED backlight function, uniquely developed as a matching accessory to assemble with other main SEG series frames. Unlike independent stand-alone display profiles, this slim 15mm frame cannot form a complete display structure alone, and it needs to be spliced and combined with LC-SR 40/50/60/80/100 series main profiles to realize layered, split and irregular shaped fabric display walls. Made of standard 6063-T5 aluminum alloy, it retains the universal SEG silicone clamping groove consistent with the whole product line, which can perfectly match the same batch of silicone strips and corner connectors. Its ultra-thin narrow edge design serves as partition edging, side border and layered separation strips in combined booth structures. It is widely used for multi-area partition exhibition backdrops, stepped layered retail display walls, and special-shaped spliced static fabric signage that requires multiple profile combinations.

Application & Selection Notes

Where LC-SR-15C fits

With only 15 mm of build-up, LC-SR-15C is specified where the frame has to disappear — meeting-room graphics, showroom captions and corridor signage that sit flat against plaster or laminate. One graphic, held on four beads: replacement is a matter of pulling the old fabric out and sliding the new one in.

Build, finish and compatibility

The extrusion is 6063-T5 aluminum with a bead channel cut after anodising, so the groove stays clean and the fabric edge does not catch. The section is closed at the back, which keeps the display free of light leak and dust; illuminated panels in this depth are handled by the double-sided profiles instead.

Cutting, packing and lead time

Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.

Specification snapshot

LC-SR-15C is a extensions, at 15 mm depth, 0.195 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.

Quick Answers

Q: Does LC-SR-15C take LED lighting?
A: No — LC-SR-15C is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.

Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.

Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.

Specifications
Item number LC-SR-15C
Depth 15MM
Frame type Extensions
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 0.195KG/M
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
