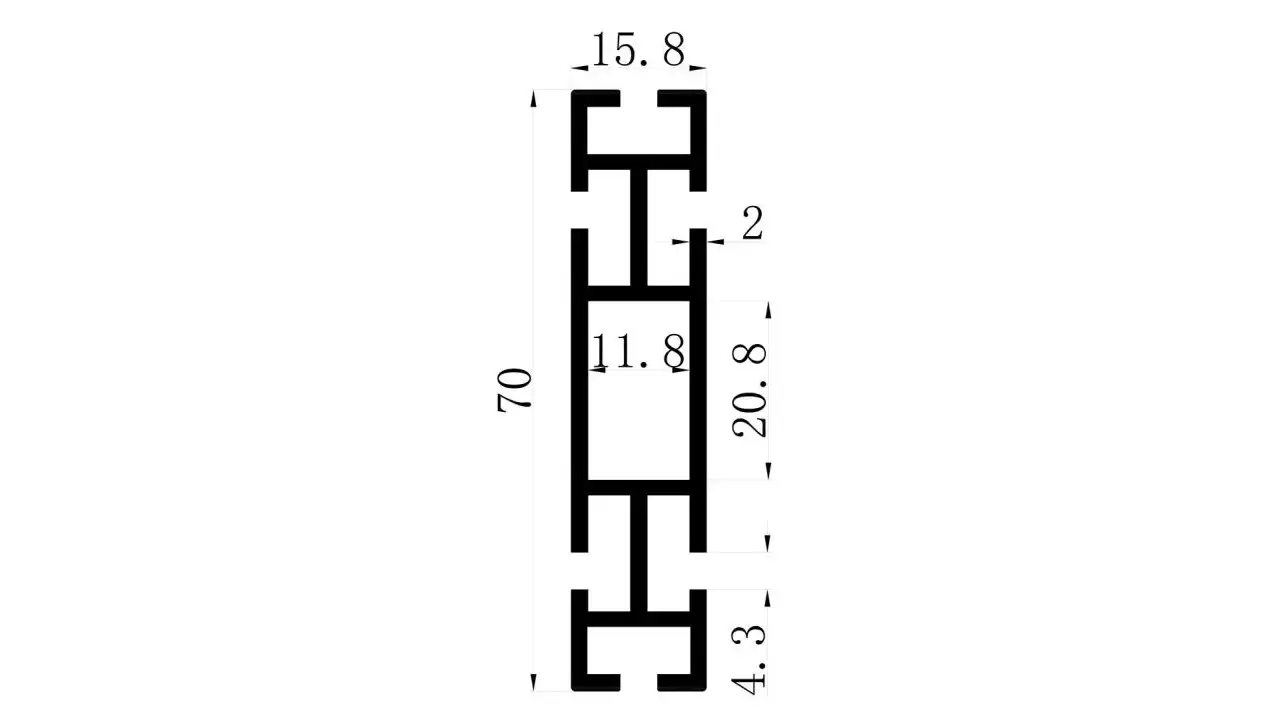

LC-P-7016B70 × 16 mm · exhibition profile · 6063-T5 aluminium


Exhibition and TradeShow

check Support Pillar

check Fixed with Connectors & Lock

check Each bar length can be customized

check 6063-T5 Aluminum

check 1.127KG/M


Surface Treatment:
*Sandblasting oxidation:
*Spraying process:

Product Description

LC-P-7016B dual-groove 70×16 flat exhibition border is upgraded version based on LC-P-7016A, equipped with two parallel front clamping grooves. It adopts the same reinforced wide flat body structure and matched universal mini three-way locks for fast splicing. The dual-groove structure allows mounting two separate layers of tension fabric at once, enabling gradient, double-sided and layered graphic design effects without extra auxiliary frames. Perfect for creative special-shaped exhibition booths, product launch stage backdrops and art expo layered display walls that need double fabric visual effects.

Application & Selection Notes

Where LC-P-7016B fits

For a stand that is built on site and struck two days later, LC-P-7016B keeps the 16 mm frame light enough to handle without a lift. Joint geometry is what makes the system reusable — bars are cut, not welded, so a rebuild is a new cut list rather than a new order.

Build, finish and compatibility

Extruded in 6063-T5 aluminum; the visible edges are radiused so a fabric skin pulls over the frame without snagging, 1.127 kg per metre, and coating in silver, black, white or a custom colour is available. Base plates, corner blocks and connectors come from the same programme; nothing needs machining on site.

Cutting, packing and lead time

Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.

Specification snapshot

LC-P-7016B is a support Pillar, at 16 mm depth, 1.127 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.

Quick Answers

Q: Can LC-P-7016B be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.

Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.

Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.

Specifications
Item number LC-P-7016B
Depth 70*16MM
Frame type Support Pillar
Mounting Use lock to secure frame
Material 6063-T5 Aluminum
Colors SILVER/BLACK/WHITE/Color of your choice
Weight 1.127KG/M
LED NO LED
Bar length 3.5M/5M/6M/Each bar length can be customized
Package Plastic/kraft paper, different packaging will bring price changes
Related Accessories
Connectors angle brackets
Connectors angle brackets
Lock
